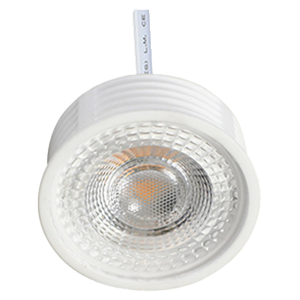

LED Ceramic module LMD-B-S6-LIC 38D 6W 7W 8W | Module

LMD-B-S6-LIC 120D,LMD-B-S6-LIC 38D,LMD-S7-LIC 120D,LMD-S7-LIC 38D,LMD-B-S8-LIC 120D,LMD-B-S8-LIC 38D

To print

Power: 6W 7W 8W

Driver: LIC driver

LED: SMD2835

Beam angle: 38°

Housing: Ceramic body+ PC cover,PC Lens

Inquiry

TECHNICAL CHARACTERISTICS

be2e0494315183a83bec596e65d5041e

Code	Power	PF	Lumen	C.R.I	Angle	Size
LED Filament AC220-240V, 50/60HZ
LMD-B-S6-LIC 38D	6W	0.5	595lm	80	38°	Φ50*H23mm
LMD-S7-LIC 38D	7W	0.5	595lm	80	38°	Φ50*H20mm
LMD-B-S8-LIC 38D	8W	0.5	595lm	80	38°	Φ50*H23mm

Code	Power	PF	Lumen	C.R.I	Angle	Size
LED Filament AC185-265V, 50/60HZ
LMD-B-S6-LIC 120D	6W	0.5	595lm	80	120°	Φ50*H25mm
LMD-S7-LIC 120D	7W	0.5	595lm	80	120°	Φ50*H20mm
LMD-B-S8-LIC 120D	8W	0.5	595lm	80	120°	Φ50*H25mm
