LDL-PB1-6 | LED DOWNLIGHT

LDL-PB1-6,LDL-PB1-10,LDL-PB1-15

BASIC INFORMATION:

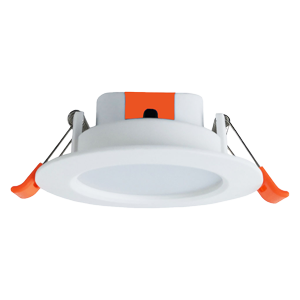

LED downlight Round 6W 10W 15W
LED: SMD2835
Driver: IC driver
Housing: PBT+PC diffuser
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.

Inquiry

TECHNICAL CHARACTERISTICS

120度天花灯6W(1)

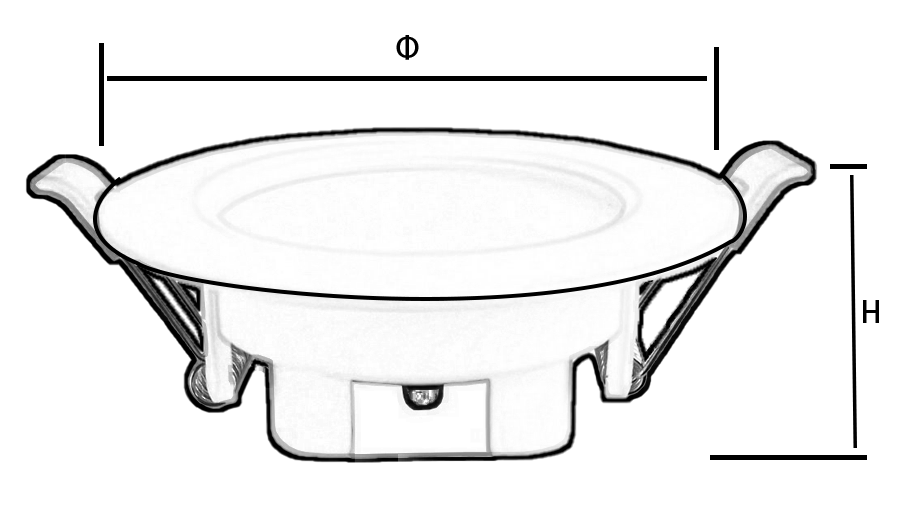

Code	Input	Power	PF	Lumen	C.R.I	Cut out	Size
LED downlight 50Hz,IP20
LDL-PB1-6	175-265V	6W	0.5	550lm	80	Φ75mm	Φ95*H42mm
LDL-PB1-10	175-265V	10W	0.5	950lm	80	Φ90mm	Φ117*H55mm
LDL-PB1-15	175-265V	15W	0.5	1400lm	80	Φ117mm	Φ140*H57mm

Code	Input	Power	PF	Lumen	C.R.I	Cut out	Size
LED downlight 50Hz,IP20
LDL-PB1-6L	220-240V	6W	0.5	550lm	80	Φ75mm	Φ95*H42mm
LDL-PB1-10L	220-240V	10W	0.5	950lm	80	Φ90mm	Φ117*H55mm
LDL-PB1-15L	220-240V	15W	0.5	1400lm	80	Φ117mm	Φ140*H57mm
