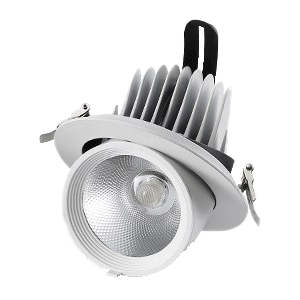

LELD-C10-R90 | LED DOWNLIGHT

LELD-C10-R90,LELD-C16-R110,LELD-C27-R135,LELD-C36-R165

BASIC INFORMATION:
LED elephant trunk lamp 10W 16W 27W 36W

Driver: External constant current LED driver,COB LED(SANAN chip)
Housing: Die-cust Aluminium body+PC lens
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.

Inquiry

TECHNICAL CHARACTERISTICS

D8E8796D38CA7F7140FFD0CB490C932E

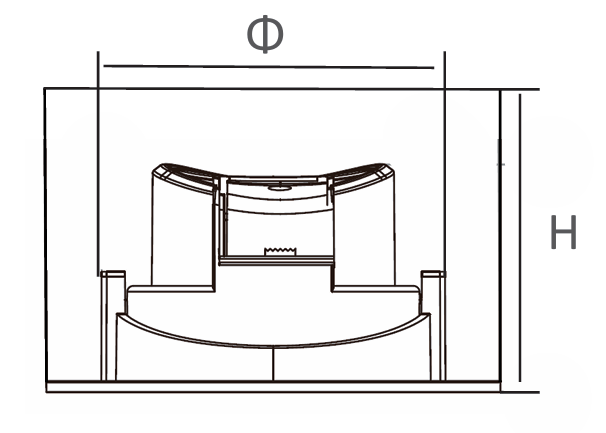

Code	Input	Power	PF	Lumen	C.R.I	Cut out.	Size
LED elephant trunk lamp 24°,50/60Hz
LELD-C10-R90	220-240V	7W	0.5	800lm	80	Ø75mm	Φ90*H62mm
LELD-C16-R110	220-240V	10W	0.5	1280lm	80	Ø95mm	Φ110*H75mm
LELD-C27-R135	220-240V	15W	0.5	2160lm	80	Ø115mm	Φ135*H112mm
LELD-C36-R165	220-240V	20W	0.5	2880lm	80	Ø150mm	Φ165*H134mm
