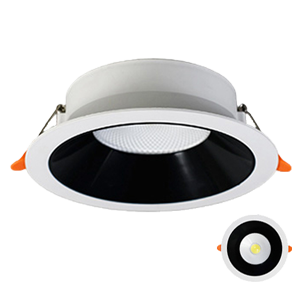

LRDL16-C7-R90-COB | LED DOWNLIGHT

LRDL16-C7-R90-COB,LRDL16-C7-R100-COB,LRDL16-C20-R170-COB...

To print

BASIC INFORMATION:
LED Downlight 7W 12W 15W 20W,Thermal Conductive plastic materil, Original and classic design,Great injection housing

Driver: DOB IC driver
Housing: PP flame retardant plastic
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.

Inquiry

TECHNICAL CHARACTERISTICS

D8E8796D38CA7F7140FFD0CB490C932E

Code	Input	Power	Lumen	DF	C.R.I	Cut	Size
LED Downlight 60°,50/60Hz,SDCM<5
LRDL16-C7-R90-COB	85-265V	7W	80lm/W	0.5	80	Ø75mm	Φ90*H44mm
LRDL16-C7-R100-COB	85-265V	7W	80lm/W	0.5	80	Ø75mm	Φ100*H40mm
LRDL16-C12-R120-COB	85-265V	12W	80lm/W	0.5	80	Ø90mm	Φ120*H42mm
LRDL16-C15-R145-COB	85-265V	15W	80lm/W	0.5	80	Ø120mm	Φ145*H45mm
LRDL16-C20-R170-COB	85-265V	20W	80lm/W	0.5	80	Ø140mm	Φ170*H50mm

Code	Input	Power	Lumen	DF	C.R.I	Cut	Size
LED Downlight 60°,50/60Hz,SDCM<5
LRDL16-S7-R100	85-265V	7W	80lm/W	0.5	80	Ø75mm	Φ100*H40mm
LRDL16-S12-R120	85-265V	12W	80lm/W	0.5	80	Ø90mm	Φ120*H42mm
LRDL16-S15-R145	85-265V	15W	80lm/W	0.5	80	Ø120mm	Φ145*H45mm
LRDL16-S20-R170	85-265V	20W	80lm/W	0.5	80	Ø140mm	Φ170*H50mm
