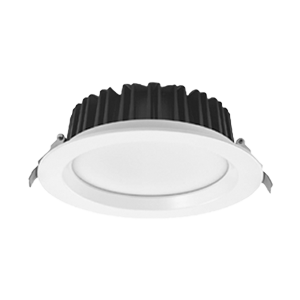

LRDL20-S10-R115-H | LED DOWNLIGHT

LRDL20-S10-R115-H,LRDL20-S15-R145-H,LRDL20-S20-R159-H...

To print

BASIC INFORMATION:
LED Downlight 10W 15W 20W 25W 30W

LED: Hongli SMD2835

Driver: IC Driver/Kegu Driver
Housing: Aluminum
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.

Inquiry

TECHNICAL CHARACTERISTICS

D8E8796D38CA7F7140FFD0CB490C932E

Code	Input	Power	Lumen	DF	C.R.I	Cut	Size
LED Downlight 100°,50/60Hz,SDCM≤5
LRDL20-S10-R115-H	220-240V	10W	>80lm/W	0.9	80	Ø95-100mm	Φ115*H48mm
LRDL20-S15-R145-H	220-240V	15W	>80lm/W	0.9	80	Ø125-130mm	Φ145*H62mm
LRDL20-S20-R159-H	220-240V	20W	>85lm/W	0.9	80	Ø140-145mm	Φ159*H60mm
LRDL20-S25-R190-H	220-240V	25W	>90lm/W	0.9	80	Ø165-175mm	Φ190*H60mm
LRDL20-S30-R230-H	220-240V	30W	>85lm/W	0.9	80	Ø200-215mm	Φ230*H72mm

Code	Input	Power	Lumen	DF	C.R.I	Cut	Size
LED Downlight 100°,50/60Hz,SDCM≤5
LRDL21-S10-R115-KH	220-240V	10W	>75lm/W	0.5	80	Ø95-100mm	Φ115*H48mm
LRDL21-S15-R145-LH	220-240V	15W	>80lm/W	0.5	80	Ø125-130mm	Φ145*H62mm
LRDL21-S20-R159-LH	220-240V	20W	>85lm/W	0.9	80	Ø140-145mm	Φ159*H60mm
LRDL21-S25-R190-LH	220-240V	25W	>95lm/W	0.9	80	Ø165-175mm	Φ190*H60mm
LRDL21-S30-R230-LH	220-240V	30W	>90lm/W	0.9	80	Ø200-215mm	Φ230*H72mm

Code	Input	Power	Lumen	DF	C.R.I	Cut	Size
LED Downlight 100°,50/60Hz,SDCM≤5
LRDL21-S40-R230-LH	220-240V	40W	>90lm/W	0.9	80	Ø200-215mm	Φ230*H72mm
