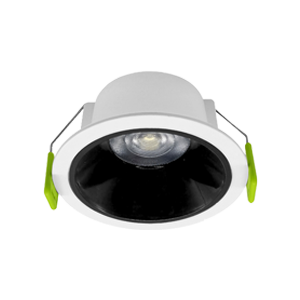

LRDL16B-S07-R90 | LED DOWNLIGHT

LRDL16B-S07-R90,LRDL16B-S07-R90-WCCT

To print

BASIC INFORMATION:
LED Downlight 7W,Long lifesapn 15000h, 2years

Driver: DOB IC driver
Housing: PA + Aluminum
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.

Inquiry

TECHNICAL CHARACTERISTICS

CCT changed by wall switch

Code	Input	Power	Lumen	DF	C.R.I	C.C.T.	Size
LED Downlight 60°,50/60Hz
LRDL16B-S07-R90	175-265V	7W	80lm/W	0.5	80	3000K/4000K/6000K	Φ90*H45mm
LRDL16B-S07-R90-WCCT	175-265V	7W	80lm/W	0.5	80	3000K/4000K/6000K	Φ90*H45mm
LRDL16B-S12-R120	175-265V	12W	80lm/W	0.5	80	3000K/4000K/6000K	Φ120*H52mm
LRDL16B-S18-R160	175-265V	18W	80lm/W	0.5	80	3000K/4000K/6000K	Φ160*H52mm
LRDL16B-S30-R220	175-265V	30W	80lm/W	0.5	80	3000K/4000K/6000K	Φ220*H52mm

Code	Input	Power	Lumen	DF	C.R.I	C.C.T.	Size
LED Downlight 60°,50/60Hz
LRDL16B-S08-R110	175-265V	8W	80lm/W	0.5	80	3000K/4000K/6000K	Φ110*H45mm
LRDL16B-S08-R110-WCCT	175-265V	8W	80lm/W	0.5	80	3000K/4000K/6000K	Φ110*H45mm
