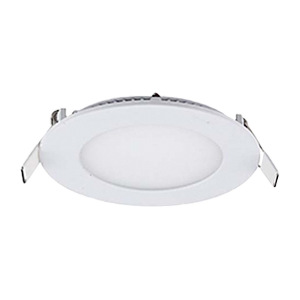

LRP-S3-R85 CE | LED PANEL LIGHT

LRP-S3-R85 CE,LRP-S6-R120 CE,LRP-S9-R145 CE...

To print

BASIC INFORMATION:
LED panel light, 3W 6W 9W 12W 18W 24W
Installation: Recessed
Driver: LIC driver
Housing: PP housing
Application: Home, showroom, Shops, etc.

CCT

Inquiry

TECHNICAL CHARACTERISTICS

LRP-120-6-EMC

Code	Input	Power	DF	Lumen	C.R.I	Cut	Size
LED panel light, 50/60Hz,SDCM≤6,120°
LRP-S3-R85 CE	220-240V	3W	0.5	240lm	80	Φ75-82mm	Φ85*25.5mm
LRP-S6-R120 CE	220-240V	6W	0.5	490lm	80	Φ93-102mm	Φ120*25.5mm
LRP-S9-R145 CE	220-240V	9W	0.5	820lm	80	Φ115-125mm	Φ145*25.5mm
LRP-S12-R173 CE	220-240V	12W	0.5	1155lm	80	Φ144-154mm	Φ173*26.5mm
LRP-S18-R220 CE	220-240V	18W	0.5	1830lm	80	Φ187-200mm	Φ220*27.5mm

Code	Input	Power	DF	Lumen	C.R.I	Cut	Size
LED panel light, 50/60Hz,SDCM≤6,120°
LRP-S24-R295 CE	220-240V	24W	0.5	2490lm	80	Φ262-275mm	Φ295*28.5mm
