LPL02-9-SS120 ICC | LED PANEL LIGHT

LPL02-9-SS120 ICC,LPL02-18-SS170 ICC,LPL02-24-SS225 ICC

BASIC INFORMATION:

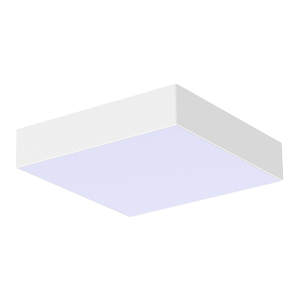

Surface-mounted narrow edge LED panel light,9W 18W 24W
Installation: Surface
Driver: Independent IC driver
Housing: Polycarbonate housing, PC diffuser
Application: Indoor lighting

Inquiry

TECHNICAL CHARACTERISTICS

LUCL-S18S2-S150

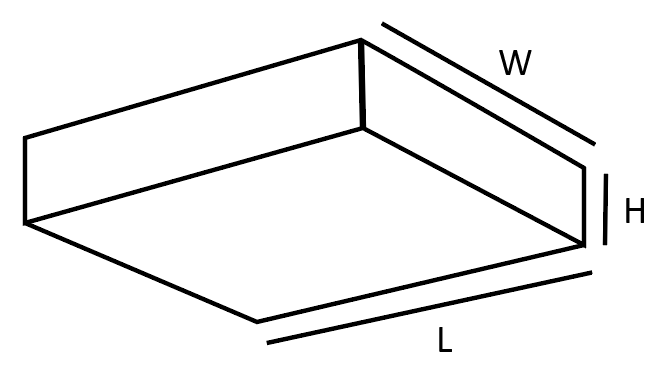

Code	Input	Power	DF	Lumen	C.R.I	Size
LED panel light, 50/60Hz,SDCM<5,110°
LPL02-9-SS120 ICC	175-265V	9W	0.7	900lm	82	L120W120H36mm
LPL02-18-SS170 ICC	175-265V	18W	0.7	1800lm	82	L170W170H36mm
LPL02-24-SS225 ICC	175-265V	24W	0.7	2400lm	82	L225W225H36mm
