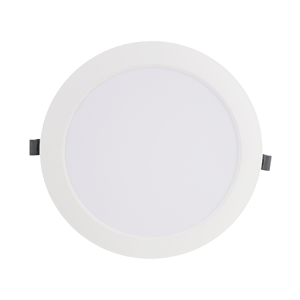

LRP-S06-R120 SCCT | LED PANEL LIGHT

LRP-S06-R120 SCCT,LRP-S09-R142 SCCT,LRP-S12-R170 SCCT...

BASIC INFORMATION:
LED Panel Light,6W 9W 12W 18W 24W,IEC standard,Slim design and great workmanship,Slim design, Long life design
Installation: Surface Mounted

LED: Gold-wired with Copper stent

Driver: DOB IC driver
Housing: PP body, PP diffuser
Application: Indoor lighting

CCT

Inquiry

TECHNICAL CHARACTERISTICS

Code	Input	Power	DF	Lumen	C.R.I	Cut	Size
LED Panel Light, 50/60Hz,SDCM<5,180°
LRP-S06-R120 SCCT	110-265V	6W	0.5	480lm	70	Φ105mm	Φ120*H26mm
LRP-S09-R142 SCCT	110-265V	9W	0.5	720lm	70	Φ130mm	Φ142*H26mm
LRP-S12-R170 SCCT	110-265V	12W	0.5	960lm	70	Φ155mm	Φ170*H26mm
LRP-S18-R225 SCCT	110-265V	18W	0.5	1440lm	70	Φ205mm	Φ225*H26mm
LRP-S24-R300 SCCT	110-265V	24W	0.5	1920lm	70	Φ280mm	Φ300*H26mm
