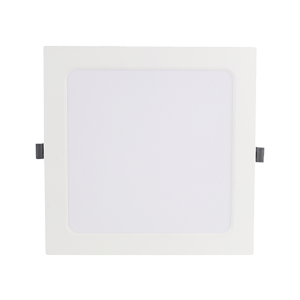

LRP-S06-S120 SCCT | LED PANEL LIGHT

LRP-S06-S120 SCCT,LRP-S12-S142 SCCT,LRP-S18-S170 SCCT...

BASIC INFORMATION:
LED Panel Light,6W 12W 18W 24W,IEC standard,Slim design and great workmanship,Slim design, Long life design
Installation: Surface Mounted

LED: Gold-wired with Copper stent

Driver: DOB IC driver
Housing: PP body, PP diffuser
Application: Indoor lighting

CCT

Inquiry

TECHNICAL CHARACTERISTICS

LUCL-S18S2-S150

Code	Input	Power	DF	Lumen	C.R.I	Cut	Size
LED Panel Light, 50/60Hz,SDCM<5,180°
LRP-S06-S120 SCCT	110-265V	6W	0.5	480lm	70	105*105mm	L120W120H26mm
LRP-S12-S170 SCCT	110-265V	12W	0.5	960lm	70	155*155mm	L170W170H26mm
LRP-S18-S225 SCCT	110-265V	18W	0.5	1440lm	70	205*205mm	L225W225H26mm
LRP-S24-S300 SCCT	110-265V	24W	0.5	1920lm	70	280*280mm	L300W300H26mm
