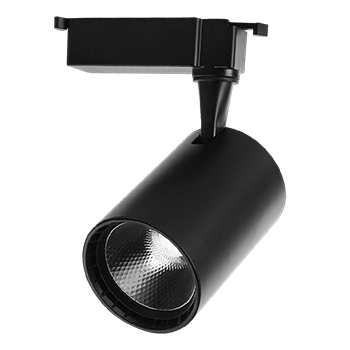

LED TRACKING LAMP | 2301 SERIES

LTL-C10 2301

To print

BASIC INFORMATION:
LED Tracking lamp 2301 series
Installation: Recessed
Size: Φ62*H105mm
Connection: Internal driver
LED board: Aluminium
LED: COB
Driver: Isolated Driver
Housing: Diecast Aluminum body
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.
Certificate: CE, RoHS

TECHNICAL CHARACTERISTICS

Directive (LVD) -2014/35/EU
Directive (EMC)-2014/30/EU
Directive (RoHS)-2011/65/EU (EU)2015/863

Directive (EuP)-2009/125/EC
EN 60598-1:2015 +A1:2018
EN 60598- 2-1:1989
EN 62493:2015
EN 62471:2008
EN 55015:2013 +A1:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 61547:2009
EN 50581:2012



CodeInputPower PF Lumen C.R.IC.C.T.IP GradeControl Mode
LED Tracking light 2301 series
LTL-C10 2301220-240V10 W0.5850LM803000KIP20Non-dim
LTL-C10 2301220-240V10 W0.5850LM804000KIP20Non-dim
LTL-C10 2301220-240V10 W0.5850LM806000KIP20Non-dim
