LBH04-S8-O160 LCE 8W 12W 15W 18W 20W 22W | LED BULKHEAD

LBH04-S8-O160 LCE,LBH04-S12-O160 LCE,LBH04-S15-O200 LCE,LBH04-S18-O200 LCE,LBH04-S20-O230 LCE,LBH04-S22-O230 LCE

To print

Input: AC220-240V, 50/60Hz

Installation: 15cm 2*0.4 square PVC outer line (tail dipping tin)

LED type: SMD2835

Driver: LIC driver

Material: PP flame retardant plastic + PP diffusion flame retardant lampshade

Life time: 15000h


CCT

Inquiry

TECHNICAL CHARACTERISTICS

4F7EBF94145C464C86FD14170F691210

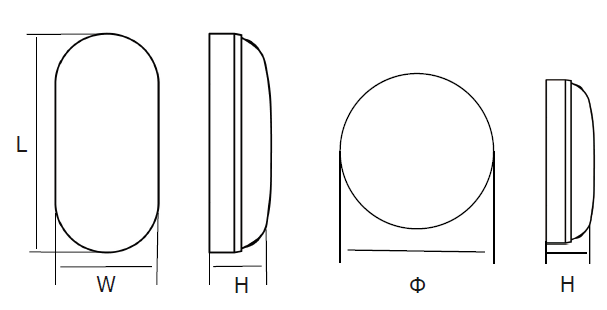

CodePowerLumen PFC.R.ISize

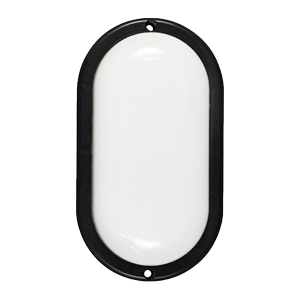

Oval LED bulkhead light 220-240V,IP54
LBH04-S8-O160 LCE 8W720lm0.580L160*W88*H46mm
LBH04-S12-O160 LCE12W1080lm0.580L160*W88*H46mm
LBH04-S15-O200 LCE15W1350lm0.580L200*W94*H46mm
LBH04-S18-O200 LCE18W1620lm0.580L200*W94*H46mm
LBH04-S20-O230 LCE20W1800lm0.580L230*W103*H47mm
CodePowerLumen PFC.R.ISize
Oval LED bulkhead light 220-240V,IP54
LBH04-S22-O230 LCE 22W1980lm0.580L230*W103*H47mm
CodePowerLumen PFC.R.ISize
Oval LED bulkhead light 220-240V,IP54
LBH04-S8-R140 LCE8W720lm0.580Ф140*H46mm
LBH04-S12-R140 LCE12W1080lm0.580Ф140*H46mm
LBH04-S15-R175 LCE15W1350lm0.580Ф175*H50mm
LBH04-S18-R175 LCE18W1620lm0.580Ф175*H50mm
LBH04-S20-R208 LCE20W1800lm0.580Ф208*H50mm
CodePowerLumen PFC.R.ISize
Oval LED bulkhead light 220-240V,IP54
LBH04-S22-R208 LCE 22W1980lm0.580Ф208*H50mm
